Description
Product Overview

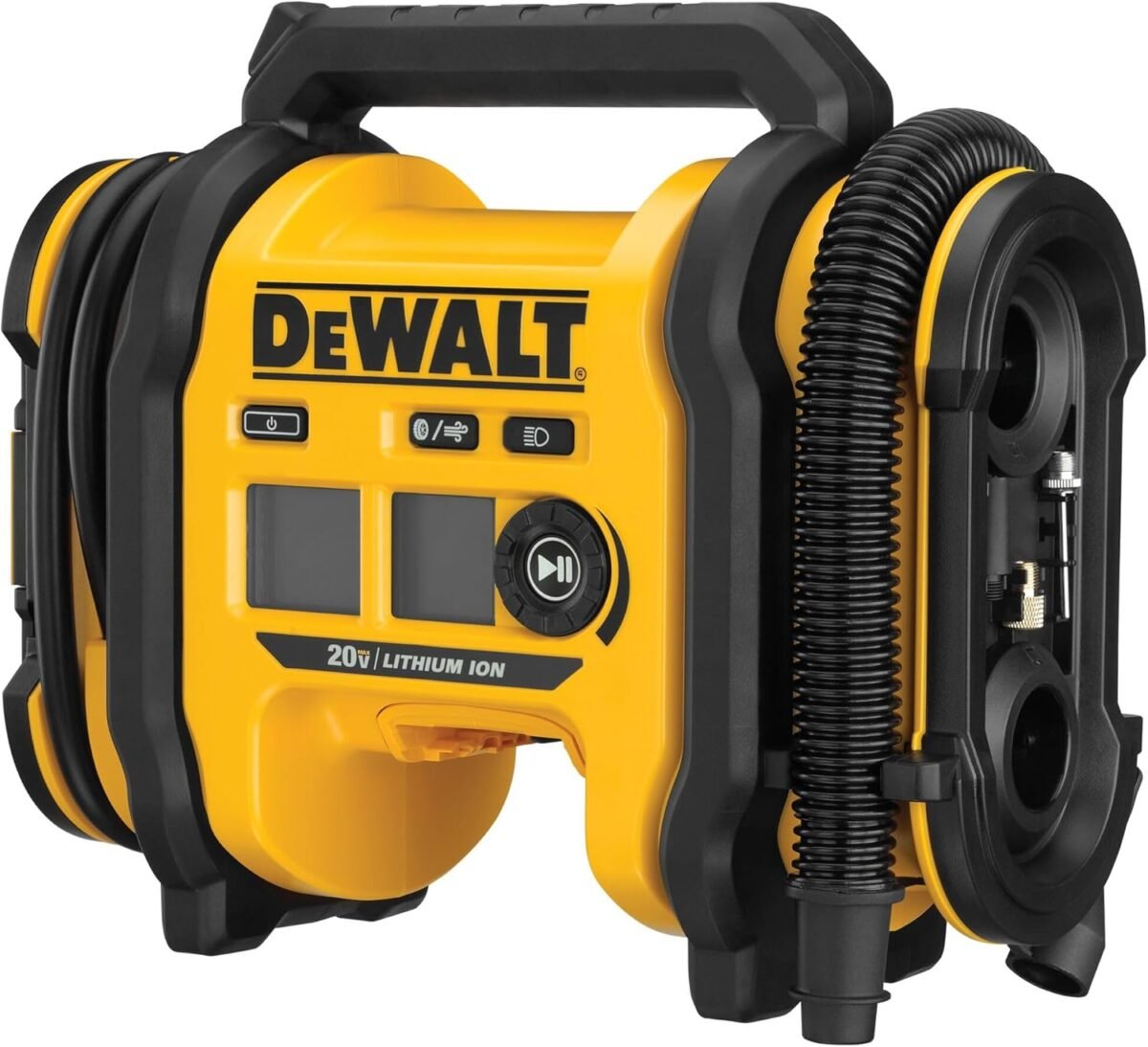

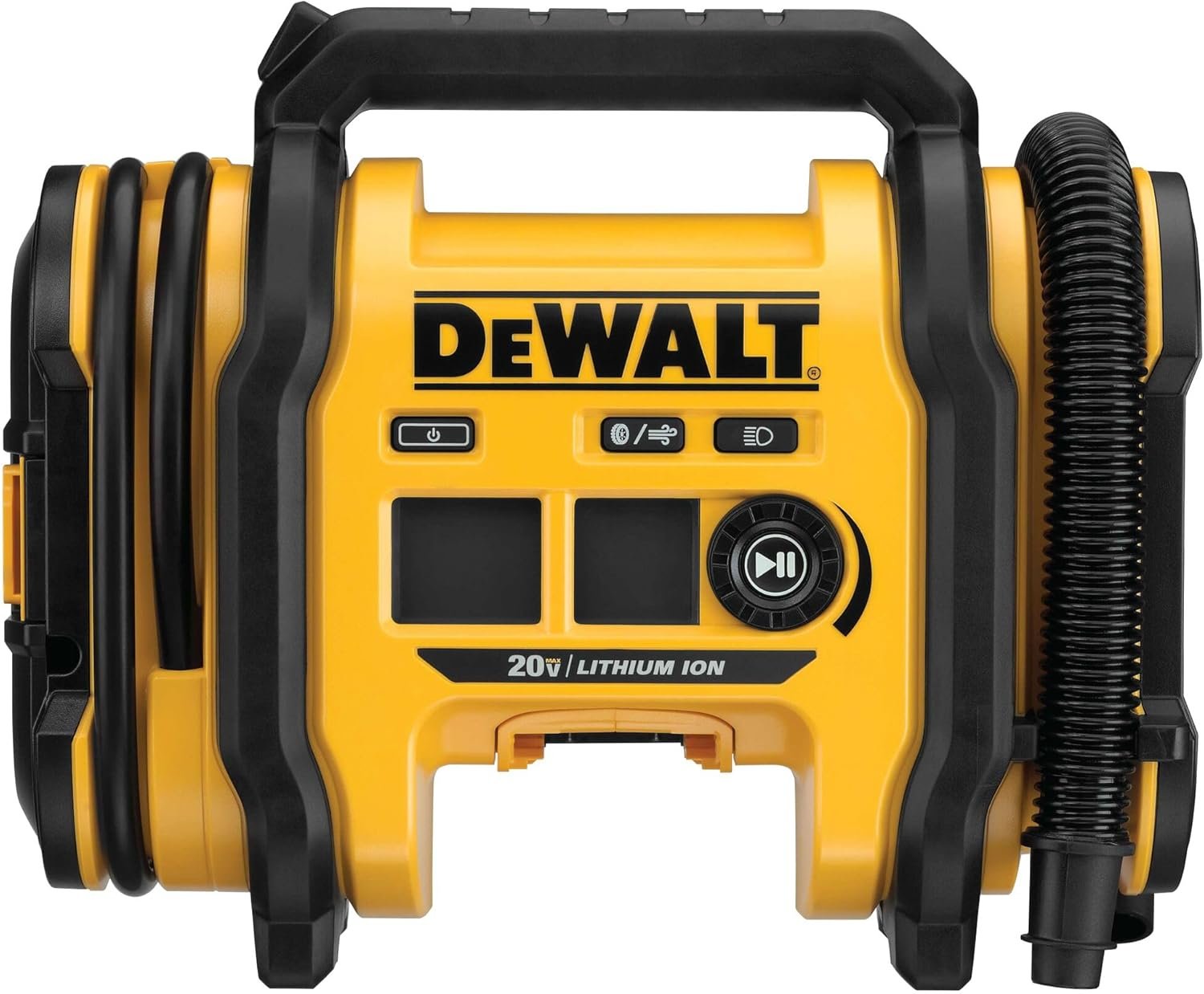

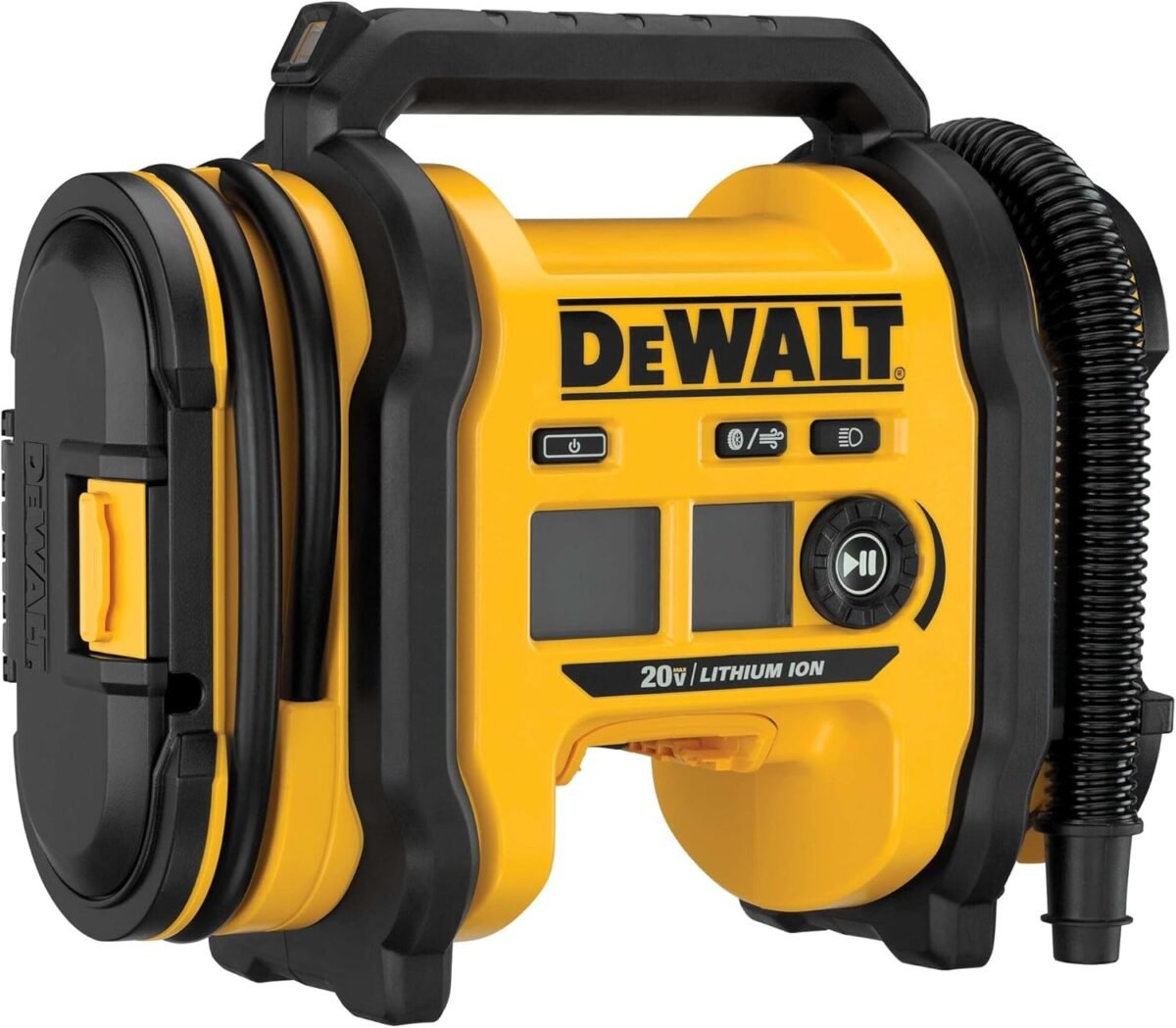

The DCC020IB is a versatile “tri-power” air inflator. It is unique because it can run on three different power sources: a DeWalt 20V battery, a car’s 12V DC outlet (cigarette lighter), or a standard 110V AC wall outlet (though the AC adapter is sold separately). It features two distinct hoses: a high-pressure hose for tires and a high-volume hose for inflatables like rafts or air mattresses.
What’s Included in the Box
1 x DCC020I Air Inflator
1 x 12V DC Power Cord (13.75 ft)
1 x High-Pressure Tapered Nozzle
1 x Presta Valve Adapter (for high-end bikes)
1 x Inflator Needle (for sports balls)
(Note: 20V Battery, Charger, and 110V AC Wall Adapter are NOT included)
Technical Specifications
| Specification | Detail |
| Voltage | 20V MAX* / 12V DC / 110V AC (Adapter sold separately) |
| Max Pressure | 3 – 160 PSI |
| High Pressure Air Flow | 0.5 SCFM (Standard Cubic Feet per Minute) |
| High Volume Air Flow | 15.2 SCFM |
| Hose Length | 29 inches (High Pressure) |
| 12V Cord Length | 13.75 ft |
| Tool Weight | 5.5 lbs (Tool Only) |
| Dimensions | 5.2″ W x 11.9″ L x 9.8″ H |
| Noise Level | ~77 dB(A) |

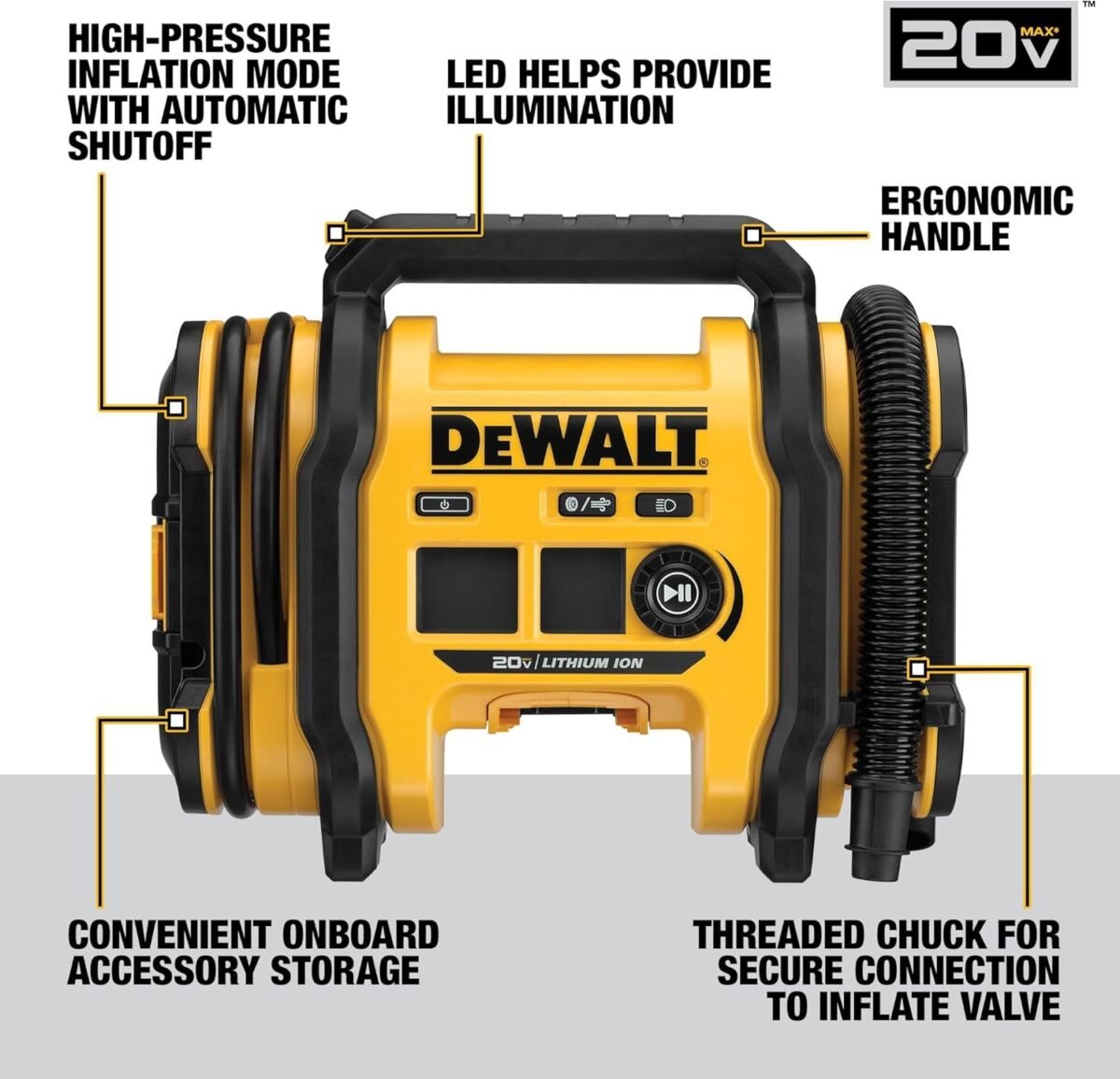

Key Features

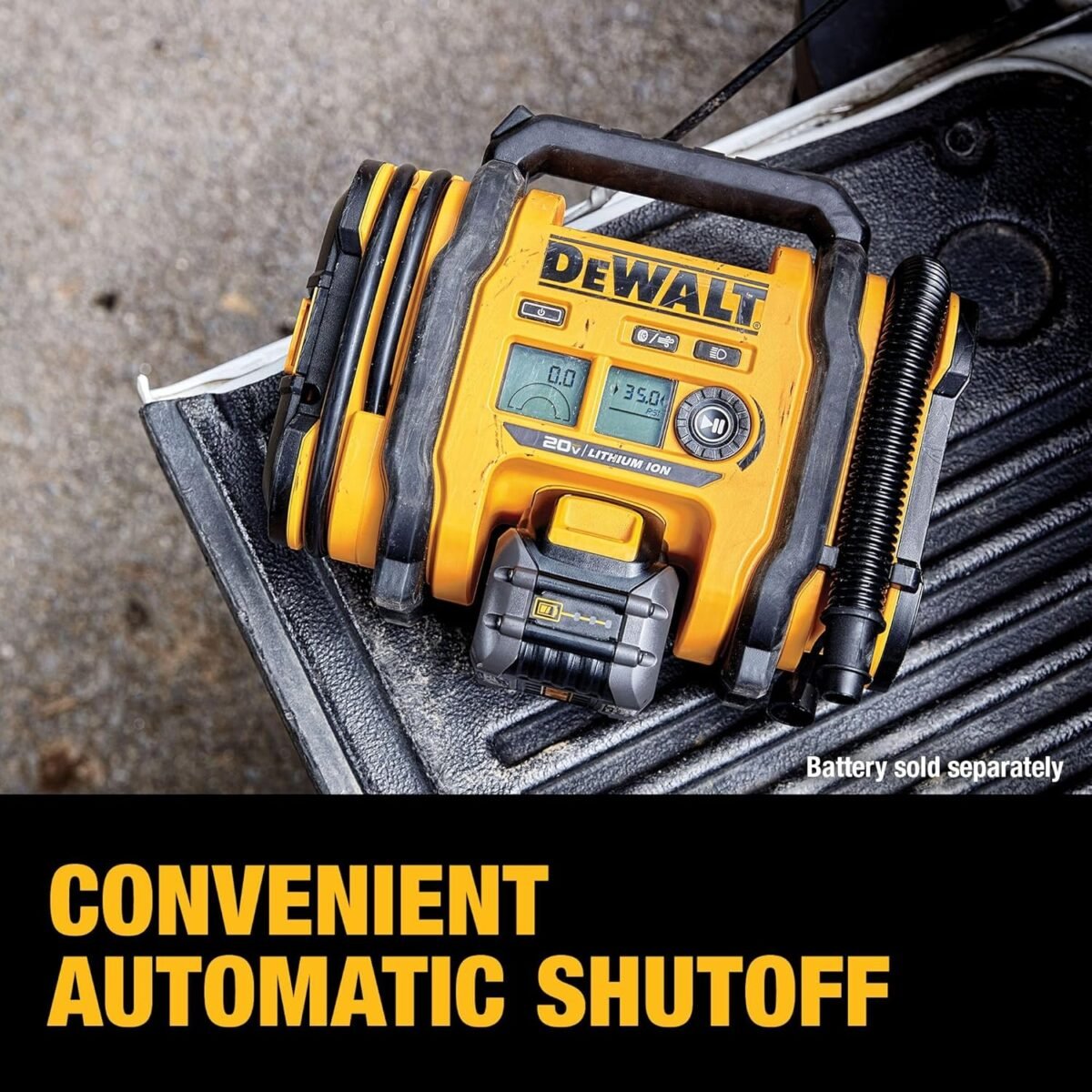

Digital Gauge with Auto-Shutoff: You can set your desired PSI (e.g., 35 PSI for a car tire), and the unit will automatically stop once that pressure is reached.
High-Volume Deflation: The hose can be moved to a deflation port to rapidly suck air out of air mattresses, making them flat and easy to pack.
Onboard Storage: All adapters, needles, and the 12V power cord store neatly on the side of the unit.

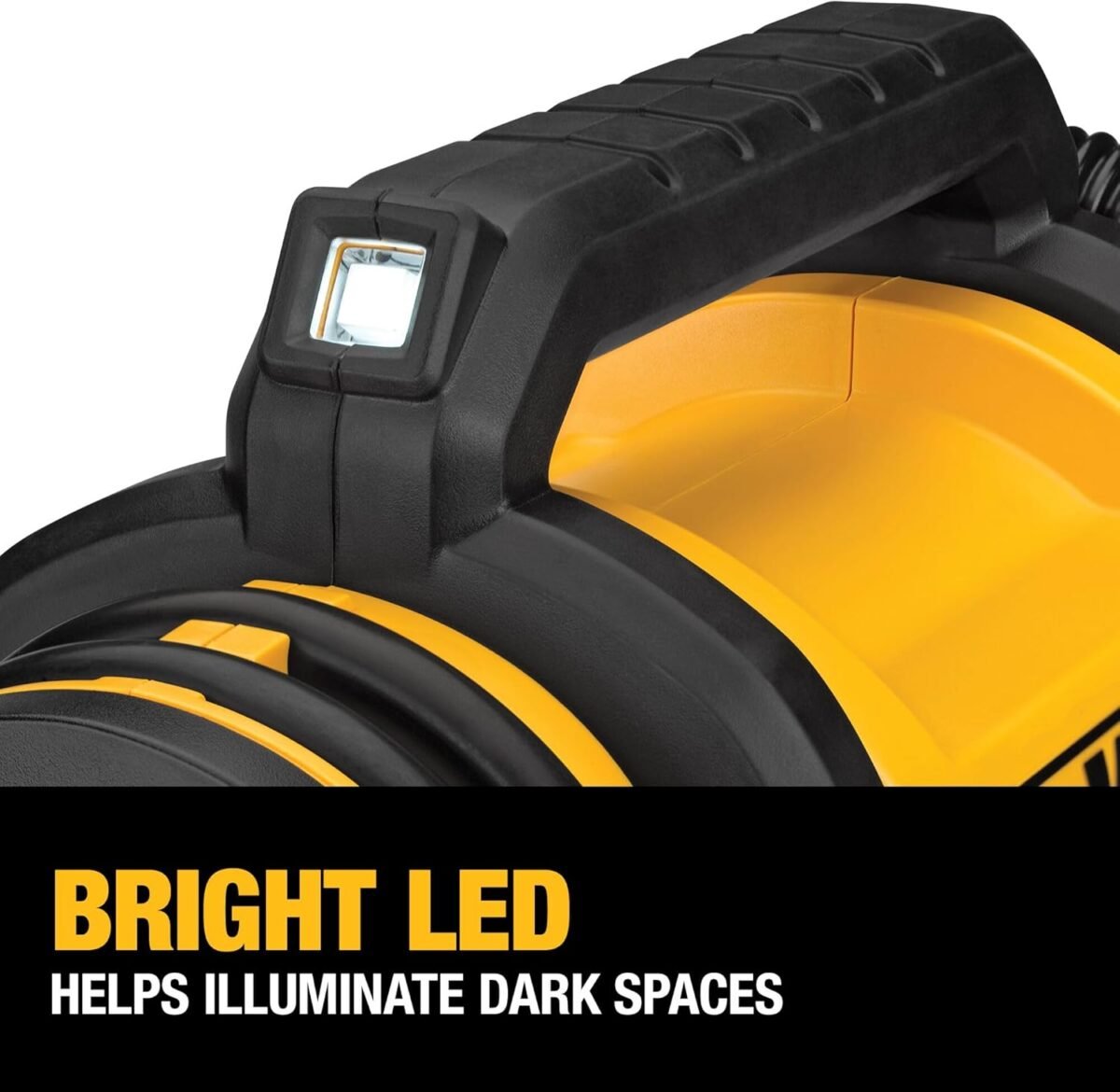

LED Light: A built-in light illuminates the valve stem area, which is critical for nighttime roadside emergencies.
Rubber Feet: Heavy-duty rubber feet prevent the unit from “walking” or vibrating away while running on concrete.
Warranty & Service
3-Year Limited Warranty
1-Year Free Service Contract
90-Day Money-Back Guarantee
Common Use Cases

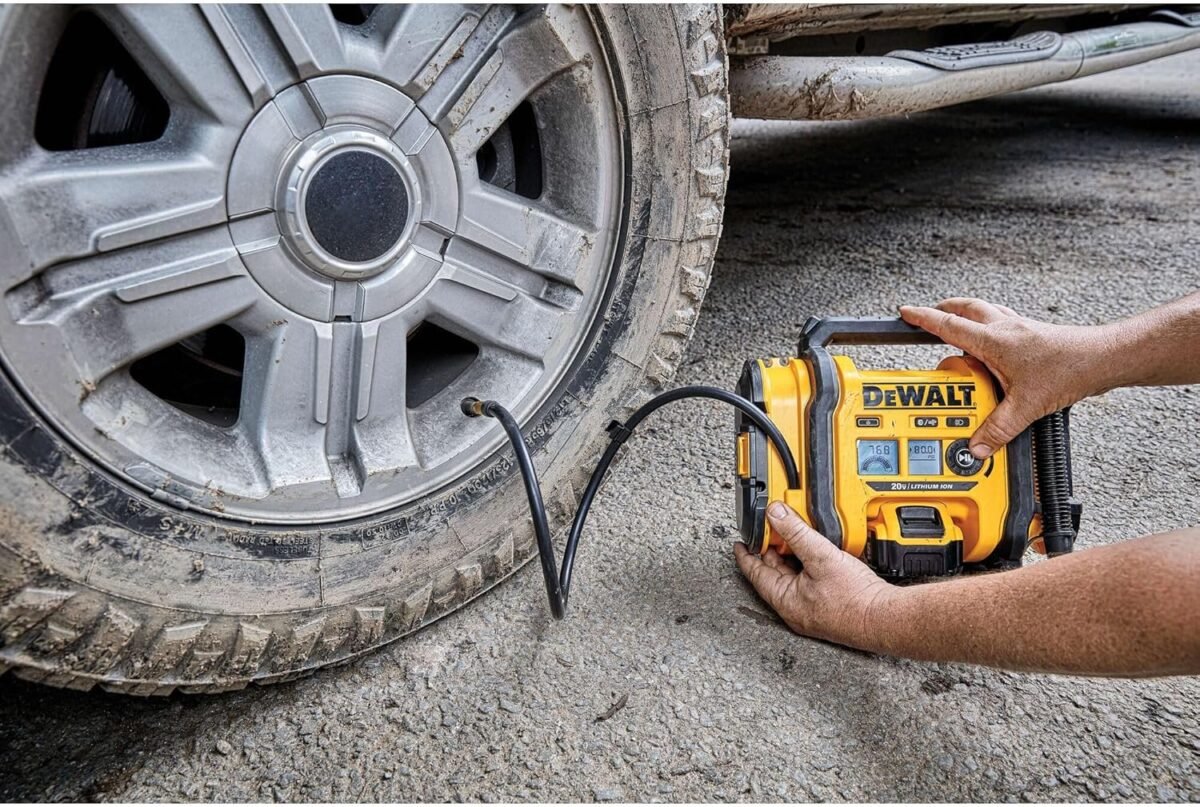

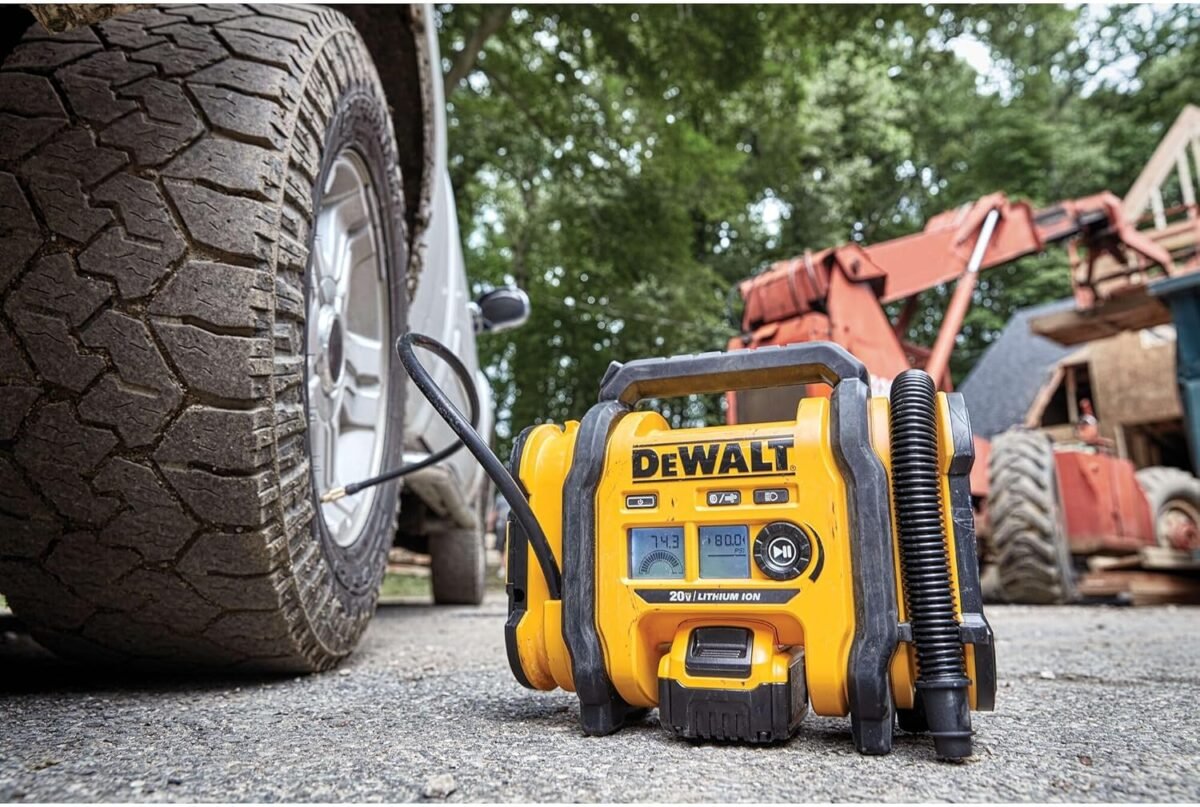

Roadside Emergency: Inflating a car tire using the 12V plug when you don’t have a charged battery.
Camping: Quickly inflating air mattresses inside a tent (using a battery) without needing an extension cord.
Cycling: Topping off road bike tires (using the Presta adapter).
Sports: Inflating soccer balls and basketballs at the field.
*Note: “20V MAX” refers to the maximum initial battery voltage (measured without a workload), which is 20 volts. Nominal voltage is 18 volts.
