DEWALT 20V MAX* XR® 5 in. Flathead Paddle-Switch Small Angle Grinder With KICKBACK BRAKE™ (Tool Only)

Product Overview

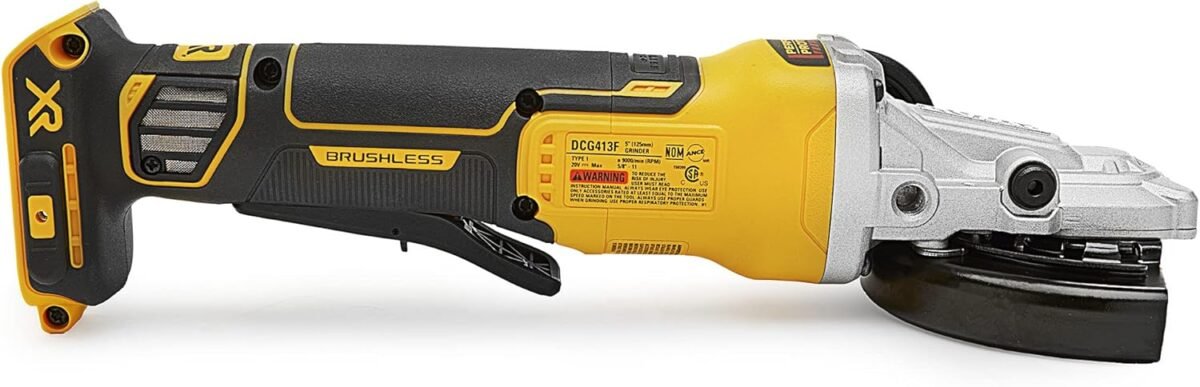

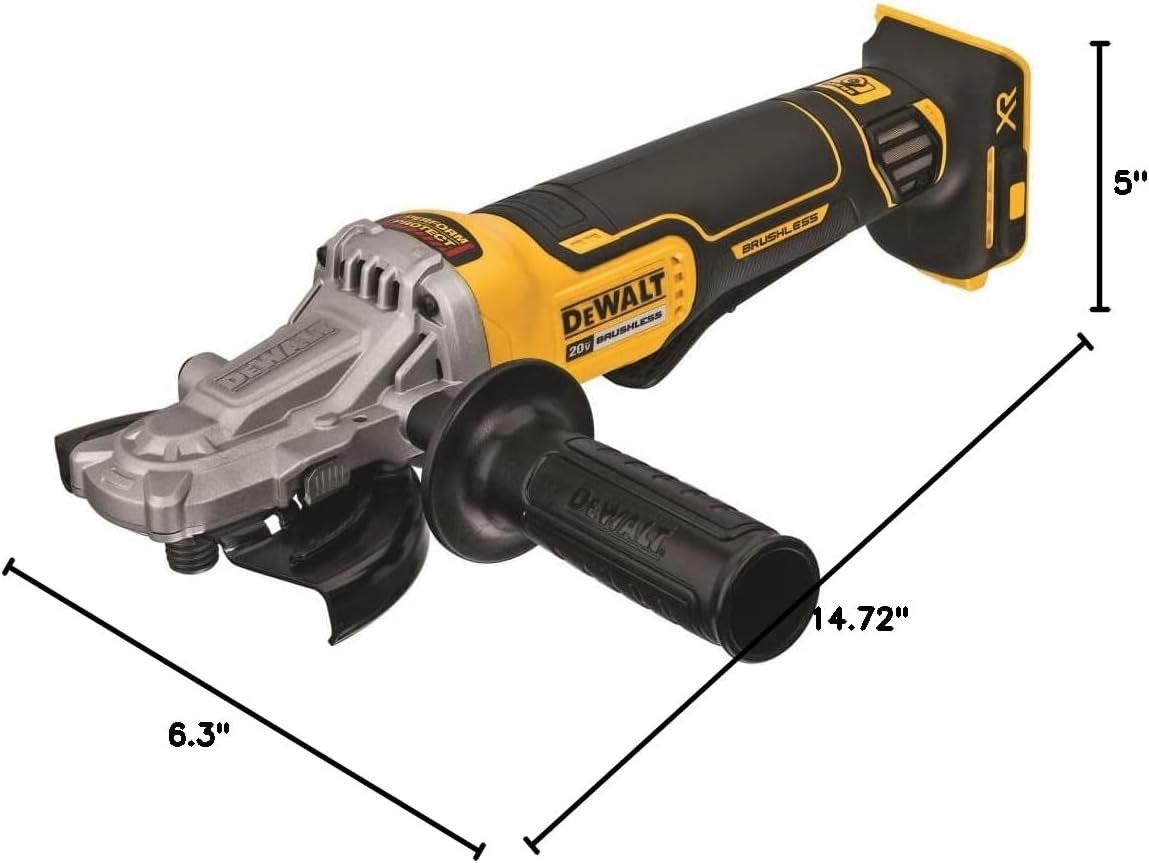

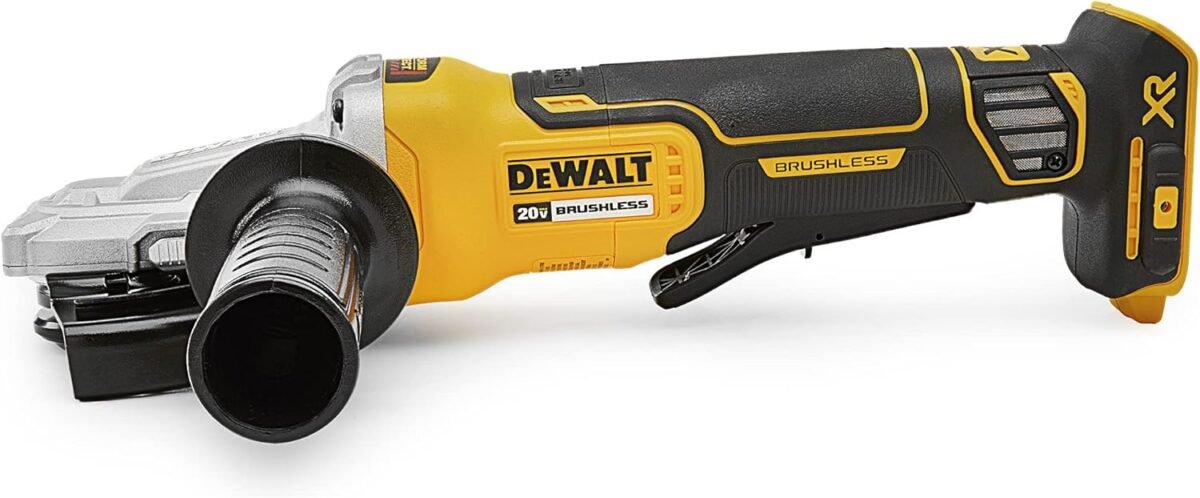

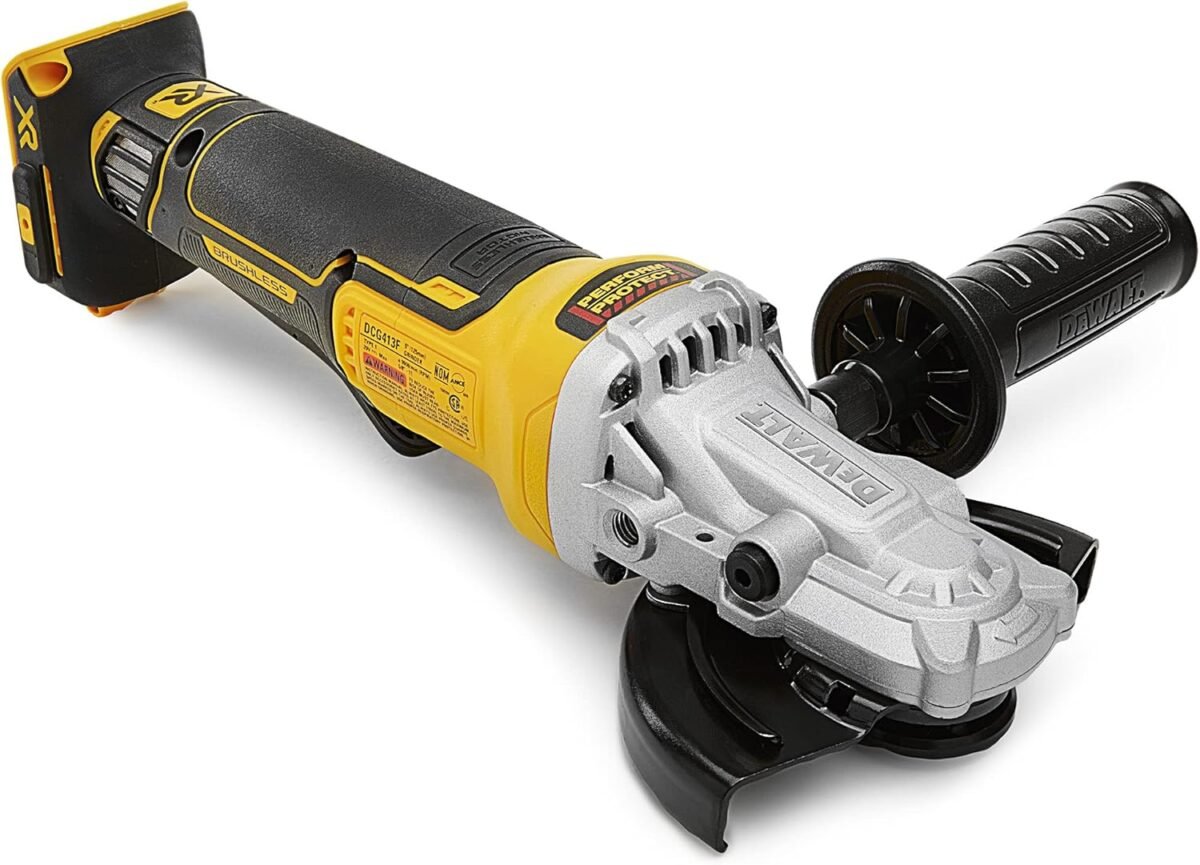

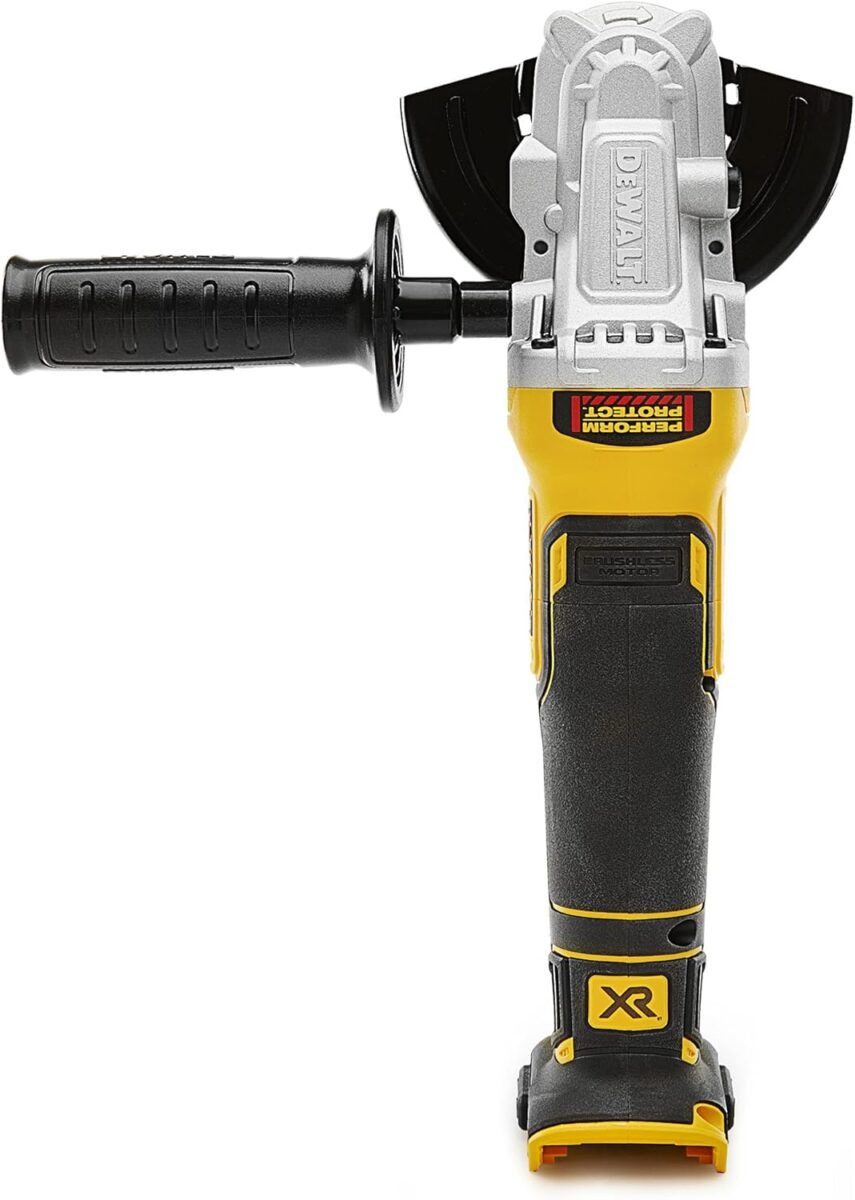

The DeWalt DCG413FB 20V MAX XR® Flathead Paddle Switch Small Angle Grinder* is a specialized version of the standard DCG413 grinder. The key difference is the “Flathead” gear case design, which is significantly lower in profile than a standard grinder head. This allows the tool to fit into acute angles (as tight as 43 degrees) and other confined spaces where a regular grinder’s head would hit the workpiece before the wheel does.

What’s Included in the Box

• 1 x DCG413 Flathead Grinder

• 1 x Side Handle

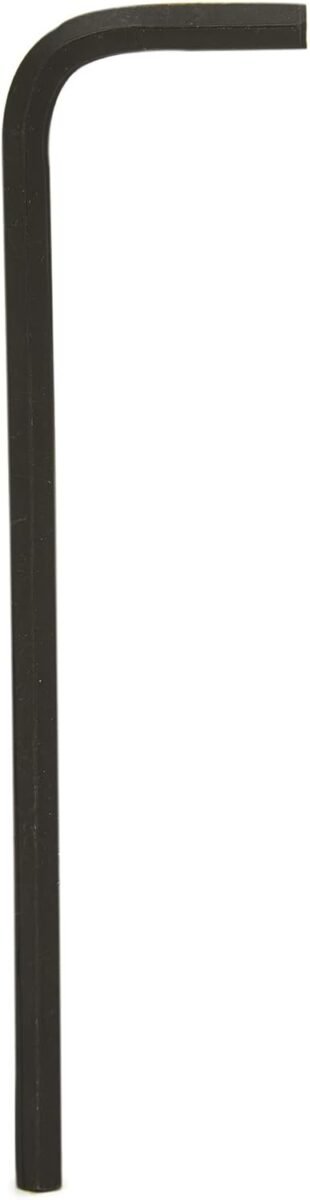

• 1 x Hex Key

• 1 x Inner and Outer Flange

• 1 x 5″ Type 27 Guard

• (Note: Battery and Charger are NOT included)



Technical Specifications

Key Features

• Flathead Gear Case: The defining feature of this model. The gear case is flattened and elongated, allowing for a much deeper reach into tight corners and narrow gaps compared to standard round-head grinders.

• Kickback Brake™: A safety feature that stops the wheel in 2 seconds or less when the trigger is released. It also engages if a pinch or stall is detected, shutting the tool down to prevent kickback.

• E-Switch Protection™: If the battery runs out or is removed while the trigger is still pressed, the tool will not restart when a fresh battery is inserted. You must cycle the trigger (release and press again) to restart.

• Paddle Switch: Features a “dead-man” paddle switch that automatically shuts off the tool if you drop it or lose your grip, which is a requirement on many industrial jobsites.

• Two-Stage Trigger: Requires two actions to activate (a safety lever must be pulled before the paddle can be depressed) to prevent accidental startup.



Warranty & Service

• 3-Year Limited Warranty

• 1-Year Free Service Contract

• 90-Day Money-Back Guarantee



Common Use Cases

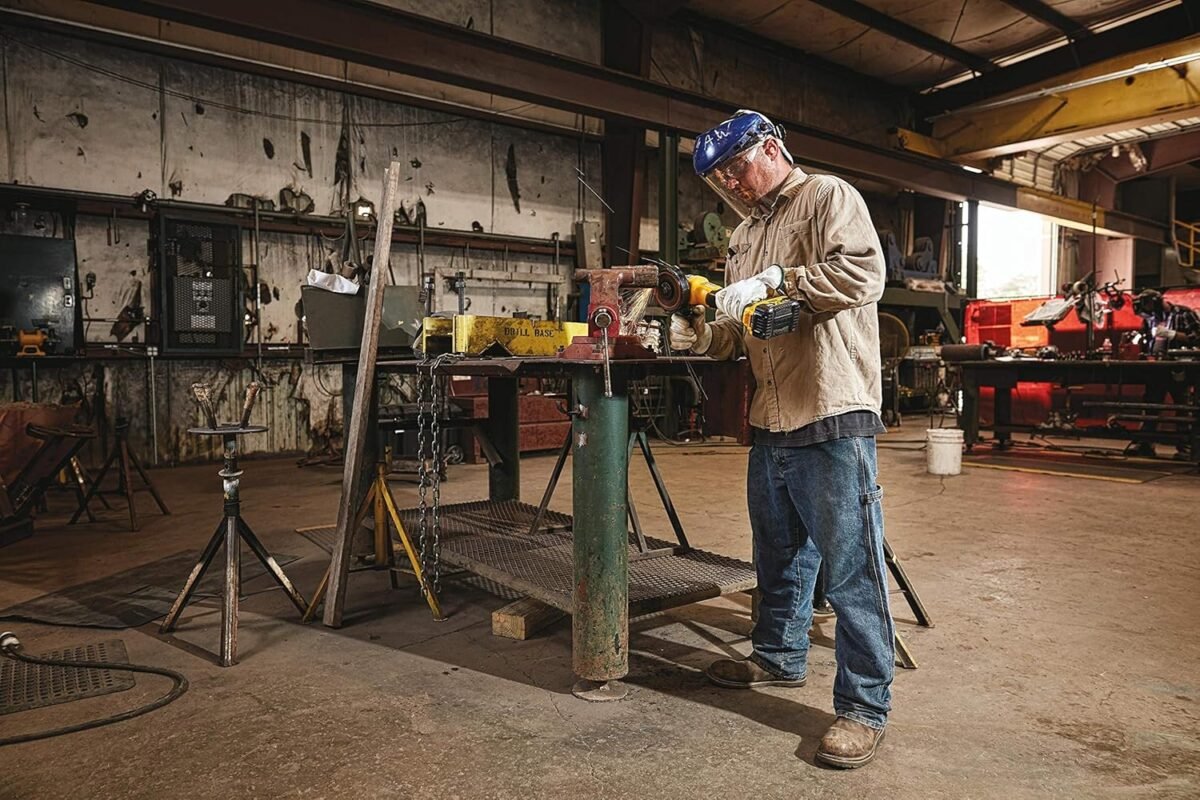

This tool is specifically designed for metal fabricators and pipe fitters. It is the problem-solver for grinding welds inside sharp angles, cleaning inside H-beams, or working in tight engine bays where a standard grinder simply won’t fit.

*Note: “20V MAX” refers to the maximum initial battery voltage (measured without a workload), which is 20 volts. Nominal voltage is 18 volts.
